DIMENTIONS - BACH BLOCK

Before starting to build the house in Revit we need to analyze the floor plan and make the dimention
lines.

We did this with downloading the floor plan from internet and scaling it. The program we used to hel us with this is Autocad, which we learned in computer tools 1. This is the steps to scale a floor plan.

1. Imort the picture of the floor plan from the box *insert* - attach, and paste the picture with the coordinates (0,0).

2. We used the standard measurement for a inside door (0.8) as a reference. Draw a line with the same length of the door. You will use this to make the reference.

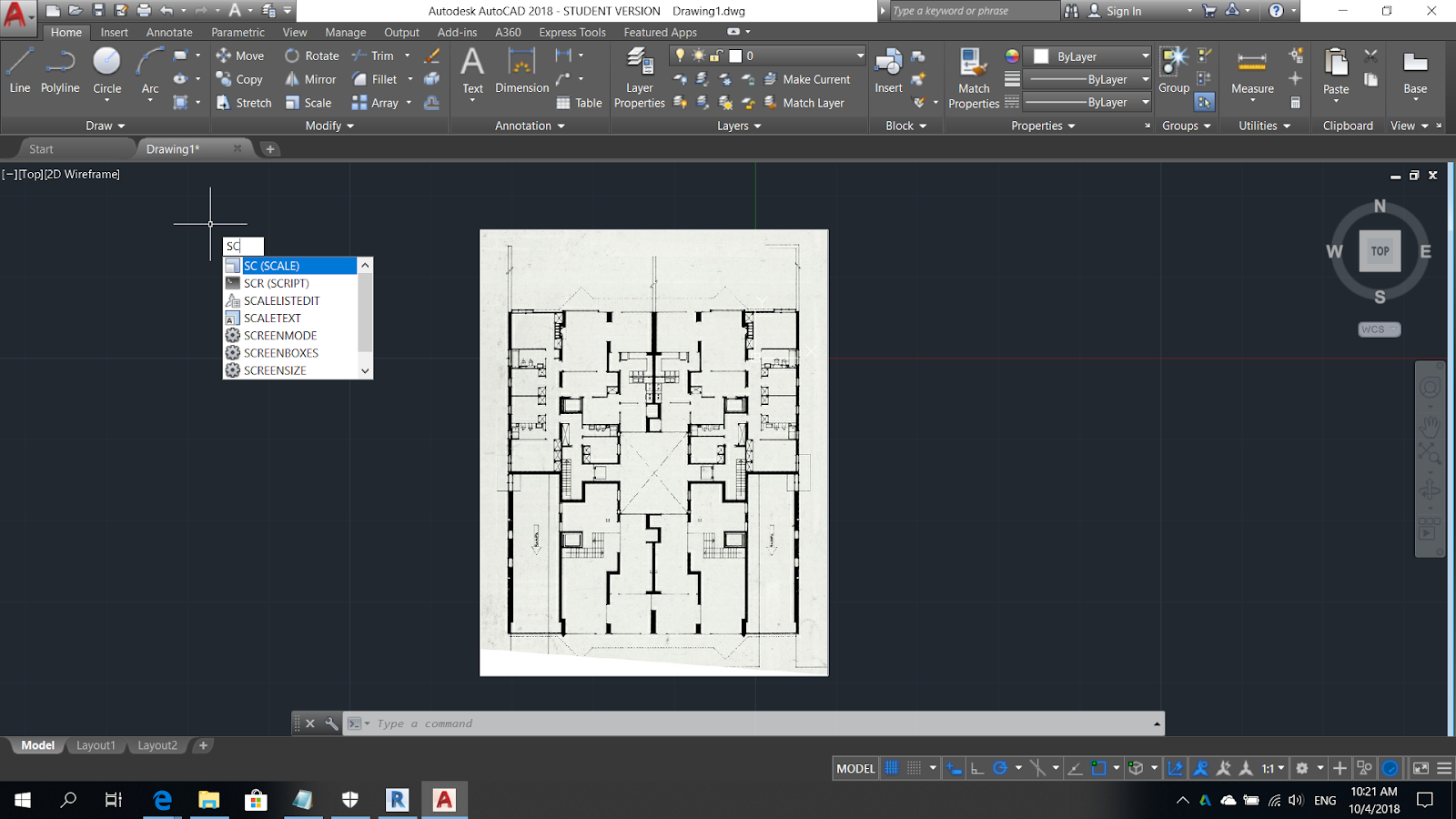

3. Write the command *Scale (SC)* and click on the door as a start point. Then it gives you the option to choose reference. Choose the length of the door you just drew, and click in both ends. Then write the measurement you want the door to have in this drawing, which in our case is 0.8 m.


Now the drawing is in scale in Autocad and we can start creating dimention lines.


Create a new style of dimention lines that fits to the drawing (we used the standard settings from comuter tools 1). In the drawing below you can see the dimention lines we created.

To make it a bit easier to see I zoomed in on the picture. This is how the dimention lines turned out.


Now we are ready to start in Revit for next class!
